Place of Origin : Botou Hebei China

Brand Name : HC

Certification : CE

Model Number : HC137

MOQ : 1set

Packaging Details : Main machine is nude, the computer control box is packed by carton box.

Delivery Time : 30days

Payment Terms : L/C,T/T

Supply Ability : 20 sets/month

Contact Now

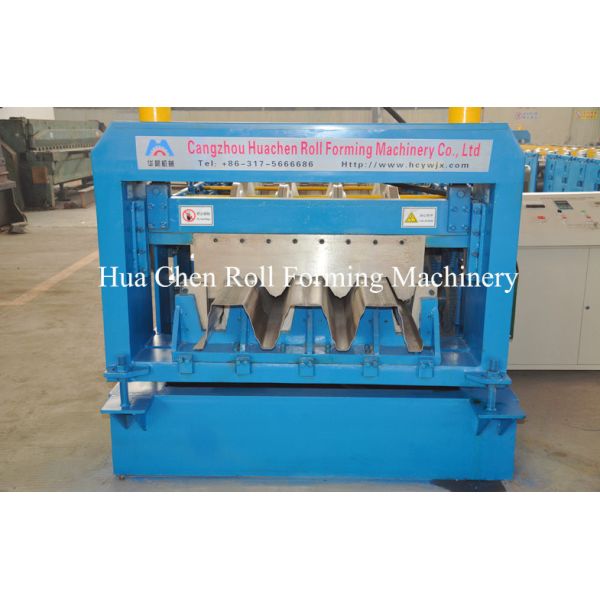

N Deck Roll Forming Machine

Description:

Floor Deck Roll Forming Machine Main parameter

No.	Main parameter of Floor Deck Roll Forming Machine
1	Suitable to process	Color steel plate
2	Width of the plate	1500mm
3	Rollers	28 rows
4	Dimensions	127001.851.61m
5	Power	33+11.5kw
6	Rolling material	shaft bearing steel(quenching)
6	Thickness of the plate	1.5mm
7	Productivity	15m/min
8	Diameter of the roller	Φ100mm
9	Voltage	380V 50Hz 3phases
10	Material of the cutting plate	Cr12
11	Hydraulic	40#
12	Processing precision	Within 1.00mm
13	Control system	PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system- cutting

Application

This type of sheet can be widely used in plant, house, storage and simple steel roof. It has advantage of pretty appearance, durable using and so on.

Competitive Advantage

1. CE certification

2. hydraulic motor drive

3. Exported to more than 70 countries

4. suitable for various kinds of steel plate

5. voltage according to customer request
