Single layer Roofing Sheet Roll Forming Machine with hydraulic motor control

Brand Name : HC

Model Number : HC24

Certification : ISO

Place of Origin : Botou Hebei China

MOQ : 1set

Price : 8000-29000USD

Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Supply Ability : 20 sets/month

Delivery Time : 30days

Packaging Details : Main machine is nude,the computer control box is packed by carton box

type : Double Decking Roofing Sheet Forming Machine with hydraulic motor control

rollers : 19

roller material : No.45 steel

warranty : 12 month

Dimensions : 7*1.5*1.5m

Thickness of the plate : 0.3-0.6mm

Contact Now

Single layer Roofing Sheet Roll Forming Machine with hydraulic motor control

Description

Metal roof sheet roll forming machine, glazed tiles rolling forming machine, roofing making machine, wall panel roll forming machine, steel profile roll forming machine, sandwich panels roll forming machine, floor deck roll forming machine, C/Z/U shaped galvanised steel bar roll forming machine, C purlin forming machine, china machinery, production machine

Competitive Advantage:
1. Full Automatic
2. Welded iron type
3. Save money
4. excellent quality
5. Operate easily
Specification

NO.	ITEM		PARAMETER	NOTE
1.	Suitable material	Type	Pre-painted sheet, Galvanized sheet
		Width(mm)	1200mm
		Thickness(mm)	0.3-0.8mm
		Yield stress(mm)	G220-G300
2.	Product specifications	Detail as the attached file
2.	Product specifications	Length	Any length
3.	Power requirement	Type	380v/3ph/50hz	Motor brand shanghai Lichao
		Main Motor power	4kw
		Cutter power	4kw
4.	Forming speed(m/min)		8-10m/min	Not include the time of cutting
5.	Manual Decoiler (Optional)	Type	Manual
		Max capacity	5t
		Suitable coil OD(MM)	1200
		Suitable coil ID(MM)	508
6.	Forming stand		14	Depend on actual design
7.	Thickness of structure		16mm
8.	Forming shaft diameter(mm)		70solid
9.	Type of cutting		Roll formed and length-set cutting
10.	Control system		Panasonic PLC and inverter
11.	Install dimension(depend on the final design)		5.2m×1.1m×1.3m	Without panel length
12.	Total weight (Approx)		3T	Depend on final design

Flow chart
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting
→Products receiving

MachineComponents

No	Name		Quantity	Remarks
1	Decoiler		1set	Up to customer
2	Main machine	Pre-cutting device	1set	Up to customer
		Feeding device	1set
		Roll forming system	1set
		Post cutting device	1set

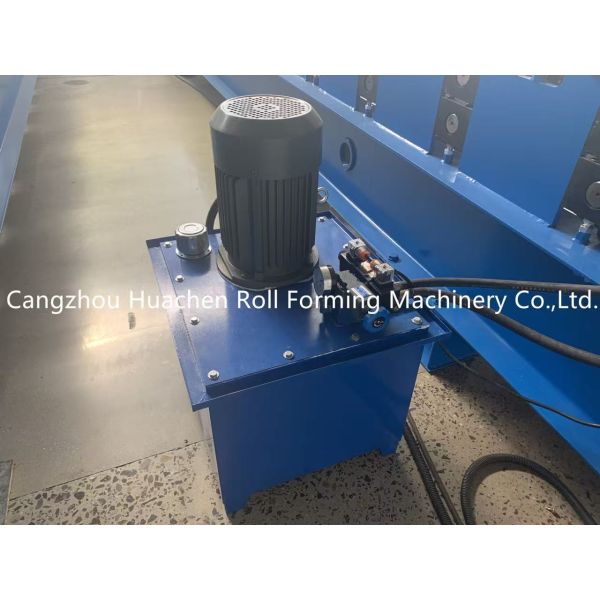

		Hydraulic system	1set
3	Electric control system		1set
4	Supporter/Automatic Stacker		1set
