380V Corrugated Roof Panel Roll Forming Machine with Hydraulic Control System and 15-20m/min Speed

Brand Name : HC

Model Number : HC38-250-1000

Certification : CE

Place of Origin : China

MOQ : 1set

Payment Terms : L/C,T/T

Supply Ability : 20 sets/month

Delivery Time : 25-30days

Packaging Details : Main roll forming machine and decoiler is nude packing, PLC control system and motor pump are packed with water proof paper, spare parts in carton box. One set of machine needs a 40GP container.

Material Type : PPGI/GI

Material Thickness : 0.3-0.6mm

Material Width : 1220mm

Roller Stations : 15Stations

Roller & Shaft Material : 45# Steel Quenching and Plating

Diameter of Shaft : Φ70mm

Cutter Material : CR12

Drive Type : Chain Drive

Speed : 15-20m/min

Total Power : 5.5+5.5KW

Voltage : 380V 50Hz 3Phases(can be customized)

Contact Now

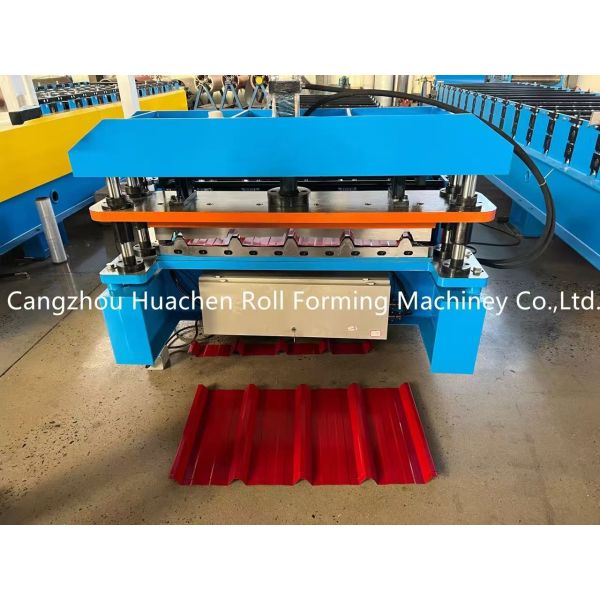

380V Corrugated Roof Panel Roll Forming Machine With Hydraulic Control System

Product Overview

We have marked a distinct position in the market by providing Steel Roof Forming Machine to our valuable clients. This Steel Roof Forming Machine is designed by our professionals utilizing high grade component, in compliance with international standards to ensure its flawlessness at users' end. The Steel Roof Forming Machine is rigorously tested on various parameters before supplying to our renowned clients. This machine can be availed in various specifications and can be customized as per needs of the clients.

Key Features

Having Multiple Roll Stations
Widely used as roof and wall of factory
Also used on warehouse, gymnasium, exhibition center
Easy installation
Light weight and high strength finish

Machine Specifications

Machine Description	Quantity	Delivery Time	Container Type
Colored steel roofing panel forming machinery	1 SET	45 working days after receiving deposit	One 40GP

Glazed Tile are widely used in building: the steel-structured large-scale warehouses, plants, supermarkets, shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, and different kinds of greenhouses. What's more, equipment can be designed and manufactured as customers' requests.

Working Process

Uncoiling → Feeding material into machine → Roll forming → Measuring length → Step formed → Auto cutting → Products receiving

Technical Parameters

NO.	Items	Parameters
1	Material	Type: GI/PPGI Width: 1220mm Thickness: 0.3-0.6mm
2	Roller Stations	15 Stations
3	Roller & Shaft Material	45# Steel Quenching and Plating
4	Diameter of Shaft	Φ70mm
5	Cutter Material	CR12
6	Drive Type	Chain Drive
7	Speed	15-20m/min
8	Total Power	5.5+5.5KW
9	Voltage	380V 50Hz 3Phases (can be customized)

Components & Technical Details

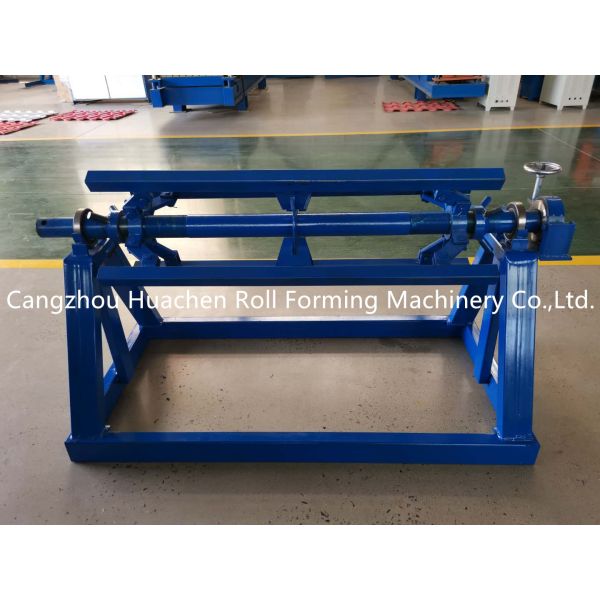

5T Manual Decoiler

380V Corrugated Roof Panel Roll Forming Machine with Hydraulic Control System and 15-20m/min Speed

This part is used to support Coil. And make the coil in a rotary way. Bearing capacity: 5T. Inner diameter: 470-530mm (adjustable according to demand). In order to avoid damage to the machine by impact when the machine is running, we have installed a brake device for you.

Feeding Table & Pre-Cutter

Guide the coil come into the correct position and going to the roll forming part. Also including a Hand Pull Cutting Device, it is convenient to pre-cut the coil when want to changing color or thickness.

Shaft & Roller

Material is 45# Steel Quenching and Plating. The processed rollers are smooth, hard and will not rust. Will not leave any scratches on the sheet when working.

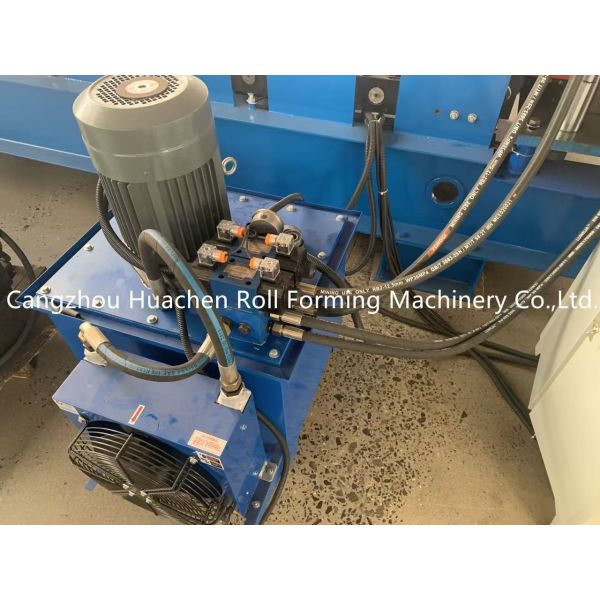

Hydraulic Pump Station

The purpose of this pump station is to drive the cutter to start cutting works. The hydraulic tank use 46# hydraulic oil. Equipped with a cooling fan which can internal circulation cooling, to ensure the oil pump station will not be affected by high oil temperature during working. Solenoid valve brand: Huade

Touch Screen Control Cabinet

The control cabinet has two modes, automatic and manual modes. The unit length of the targeted sheet and quantity can be set in the touchscreen. The system is simple and easy to operate. Electrical Component Brand: VFD: Delta, Circuit breaker: Delixi, Contactor: Delixi, Relay: Xinling, PLC: Delta, Transformer: Delixi

Pressing Section & Cutter

The material of blade is CR12. With high strength, better hardenability and good wear resistance.

Output Table

This part is used to collect the formed products. The bracket is equipped with rollers to facilitate the product forwarding without being scratched.

Spare Parts Included

Chains: 2 Sets
Solenoid Valve: 1 Set
Travel Switch: 2 Sets
Open-End Wrenches: 2 Sets
Hexagon Wrench: 2 Sets
Counter: 1 Set
Wrench: 2 Sets
Oil Seals: 1 Set
